In the rapidly evolving world of electronics, efficient thermal management has become a critical challenge, especially with the increasing power density and miniaturization of electronic components. Traditional Printed Circuit Boards (PCBs) made from materials like FR4 often struggle to dissipate the heat generated by high-power devices, leading to reduced performance, reliability issues, and shortened component lifespans. To address these challenges, Aluminum PCBs have emerged as a superior solution, offering exceptional thermal conductivity and mechanical stability.
Aluminum PCBs, also known as Metal Core PCBs (MCPCBs), Aluminum Clad PCBs, or Insulated Metal Substrate (IMS) PCBs, utilize an aluminum alloy as their base material instead of the conventional fiberglass. This fundamental difference allows them to act as highly effective heat sinks, drawing heat away from critical components and efficiently dissipating it into the environment. First introduced in the 1970s for power amplifier hybrid integrated circuits, their adoption has significantly expanded, particularly with the growth of the LED lighting industry and other high-power applications.
The primary importance of Aluminum PCBs lies in their ability to manage heat far more effectively than standard FR4 boards. While FR4 materials typically have a thermal conductivity of around 0.3 W/mK, aluminum boasts a thermal conductivity of approximately 200-250 W/mK. This substantial difference enables Aluminum PCBs to maintain optimal operating temperatures for electronic devices, thereby enhancing their performance, ensuring their longevity, and improving overall system reliability. This guide will delve into the structure, properties, design considerations, manufacturing process, and diverse applications of Aluminum PCBs, providing a comprehensive understanding of this vital technology in modern electronics.

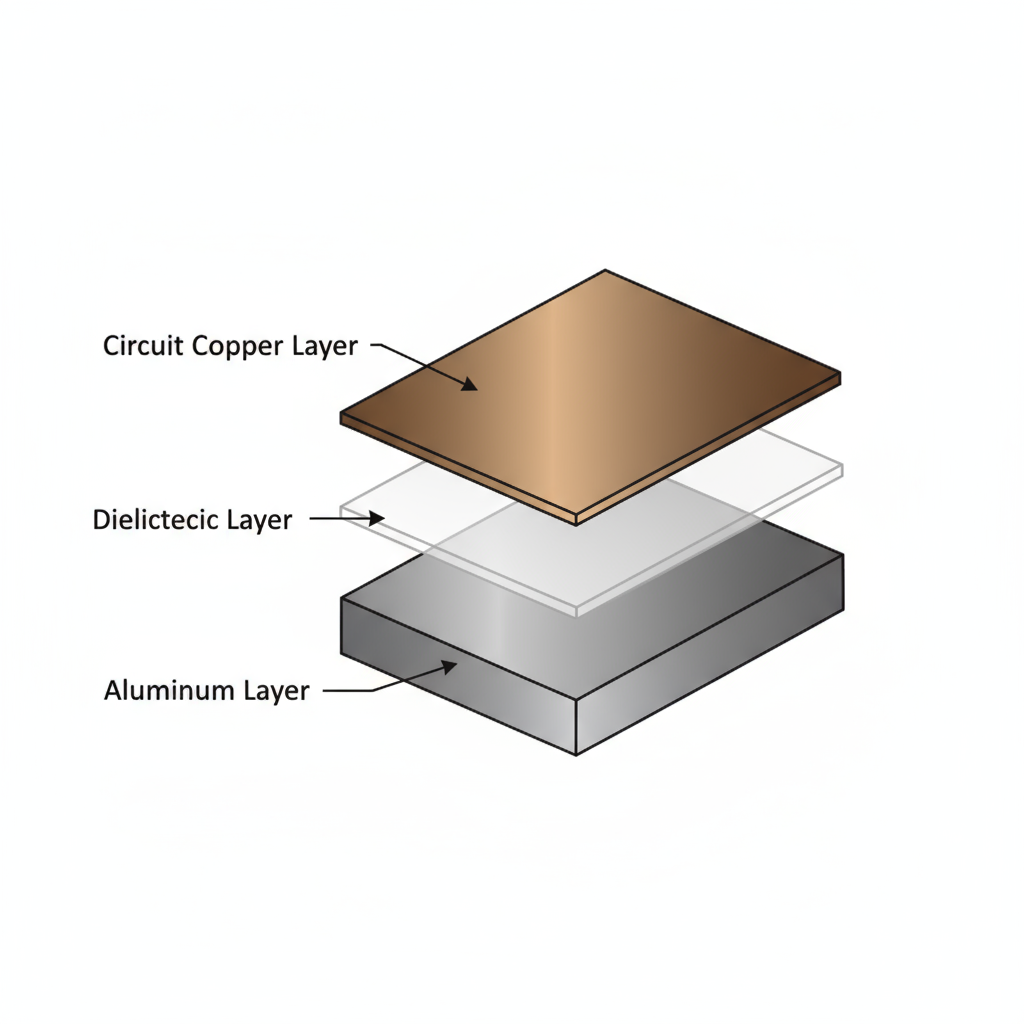

Structure of Aluminum PCBs
A typical Aluminum PCB is composed of several distinct layers, each playing a crucial role in its overall functionality and thermal performance. Understanding this layered structure is key to appreciating how these PCBs effectively manage heat while maintaining electrical integrity. The main layers include:
1. Circuit Copper Layer
This is the uppermost layer of the Aluminum PCB, similar to that found in traditional FR4 PCBs. It is where the electronic circuit patterns are etched, forming traces, pads, and component footprints. In Aluminum PCBs, this copper layer is often thicker than in standard PCBs, typically ranging from 1 oz to 10 oz (35 µm to 350 µm). This increased thickness allows it to carry higher currents and contributes to better heat spreading across the surface before the heat is transferred downwards.
2. Dielectric Insulation Layer (Thermal Insulating Layer)
Also known as the pre-preg (PP) layer or thermal insulating layer, this is a critical component positioned between the copper circuit layer and the aluminum base. It is made from a thermally conductive but electrically insulating material, often a ceramic-filled polymer. The dielectric layer serves three primary functions:
•Electrical Insulation: It prevents electrical short circuits between the conductive copper layer and the metallic aluminum base.
•Thermal Conduction: Despite being an electrical insulator, it is designed to have high thermal conductivity (typically 1-3 W/mK), efficiently transferring heat generated by components from the copper layer to the aluminum base.
•Mechanical Bonding: It firmly bonds the copper foil to the aluminum substrate, ensuring structural integrity.
The thickness of this layer is crucial; a thinner dielectric layer generally offers lower thermal resistance, leading to more efficient heat transfer.
3. Aluminum Base Layer
This is the core and foundation of the Aluminum PCB. Made from an aluminum alloy (such as 1100, 5052, or 6061), this layer provides the mechanical strength and acts as the primary heat sink. Its high thermal conductivity (200-250 W/mK) is responsible for the superior heat dissipation capabilities of Aluminum PCBs. The aluminum base can also be machined to include features like slots, fins, or other geometries to further enhance cooling efficiency. It also provides excellent dimensional stability, resisting warping and deformation under thermal stress.
4. Aluminum Base Membrane (Optional)
Some Aluminum PCBs may include an additional oxide film or protective membrane on the surface of the aluminum base layer. This membrane serves to prevent scratches, protect against chemical corrosion, and enhance the adhesion between the dielectric layer and the aluminum base. While not always present, it can contribute to the overall durability and reliability of the PCB.
This multi-layered construction ensures that Aluminum PCBs not only meet the electrical performance requirements of electronic circuits but also provide exceptional thermal management, making them an ideal choice for high-power and high-temperature applications. The precise engineering of each layer is what gives Aluminum PCBs their distinct advantages over traditional PCB materials.
Properties and Advantages of Aluminum PCBs
Aluminum PCBs offer a compelling set of properties that make them highly advantageous over traditional FR4 PCBs, especially in applications demanding efficient thermal management and robust performance. These benefits stem directly from the unique material composition and layered structure.
1. Superior Thermal Dissipation
This is arguably the most significant advantage of Aluminum PCBs. The high thermal conductivity of the aluminum base (200-250 W/mK) allows heat to be rapidly transferred away from heat-generating components. Compared to FR4, which has a thermal conductivity of only 0.3-0.5 W/mK, Aluminum PCBs can reduce the operating temperature of electronic devices by a significant margin. For instance, a 1.5mm thick Aluminum PCB can have a thermal resistance of 1-2 °C/W, while an FR4 board of the same thickness might have 20-22 °C/W. This superior heat transfer prevents hotspots, reduces thermal stress on components, and significantly extends the lifespan and reliability of electronic devices.
2. Reduced Thermal Expansion
Electronic components and PCB materials expand and contract with temperature changes. A mismatch in the Coefficient of Thermal Expansion (CTE) between the PCB substrate and components can lead to mechanical stress, solder joint fatigue, and ultimately, device failure. Aluminum has a CTE (approximately 22 ppm/°C) that is closely matched to that of copper (18 ppm/°C) and many common electronic components. This compatibility minimizes stress on solder joints during thermal cycling, enhancing the reliability of Surface Mount Technology (SMT) assemblies.
3. Enhanced Dimensional Stability
Aluminum PCBs exhibit excellent dimensional stability, meaning they maintain their shape and size even under varying temperature conditions. For example, when subjected to temperature changes from 30°C to 140°C, the dimensional change in an Aluminum PCB is typically only 2.5% to 3%. This is significantly more stable than FR4, making Aluminum PCBs particularly suitable for applications requiring high precision and consistent performance over a wide temperature range.
4. High Durability and Mechanical Strength
Aluminum is a lightweight yet robust metal, providing Aluminum PCBs with superior mechanical strength and durability compared to ceramic-based metal core PCBs. They are less fragile, more resistant to impact, and can withstand harsh operating environments, making them more reliable during manufacturing, transportation, and in end-use applications.
5. Environmental Friendliness
Aluminum is a non-toxic, recyclable, and abundant material. The use of Aluminum PCBs aligns with green manufacturing principles, contributing to more sustainable electronic products. Their recyclability also reduces the environmental impact associated with electronic waste.
6. Cost-Effectiveness
While the initial cost of an Aluminum PCB might be slightly higher than a standard FR4 board, it is considerably more economical than copper-based metal core PCBs. Furthermore, the inherent heat dissipation capabilities of Aluminum PCBs often eliminate the need for additional external heat sinks, fans, or complex thermal management systems. This simplification of design and reduction in auxiliary components can lead to significant overall cost savings in the long run, especially for high-power applications.
7. Electromagnetic Shielding and High Dielectric Strength
The aluminum base layer provides natural electromagnetic shielding, which helps to reduce electromagnetic interference (EMI) and improve the signal integrity of the circuit. Additionally, the dielectric insulation layer ensures high dielectric strength, providing excellent electrical isolation between the circuit layer and the metal base, thus enhancing the safety and stability of the electronic device.
These combined properties make Aluminum PCBs an ideal choice for a wide array of modern electronic applications where thermal performance, reliability, and durability are paramount.
Types of Aluminum PCBs
Aluminum PCBs are not a monolithic category; they come in various types, each designed to cater to specific application requirements and performance needs. The classification often depends on the complexity of the circuit layer and the specific construction method.
1. Standard Aluminum PCB (Single Layer)
This is the most common and basic type of Aluminum PCB. It consists of a single copper circuit layer, a dielectric insulating layer, and an aluminum base layer. The components are mounted on the copper layer, and heat is efficiently transferred through the dielectric to the aluminum base. This type is widely used due to its simplicity, cost-effectiveness, and excellent thermal performance for single-sided component placement.
2. Hybrid Aluminum PCB
Hybrid Aluminum PCBs combine the benefits of both traditional FR4 materials and aluminum. In this configuration, a non-thermal material (like FR4) is processed and then bonded to an aluminum base. This allows for more complex circuit designs on the FR4 side, while the aluminum base still provides superior thermal dissipation. This type is often used when a design requires multi-layer capabilities or fine-line circuitry that might be challenging to achieve directly on a standard aluminum substrate, but still needs effective heat management.
3. Multi-Layer Aluminum PCB
While less common and more complex to manufacture than standard single-layer aluminum PCBs, multi-layer aluminum PCBs exist for applications requiring even higher circuit density and thermal performance. These PCBs typically involve multiple layers of circuit traces separated by dielectric layers, all bonded to an aluminum core. The challenge lies in effectively transferring heat from the inner layers to the aluminum base, often requiring advanced thermal management techniques like thermal vias.
4. Flexible Aluminum PCB
Flexible Aluminum PCBs are a newer development, combining the thermal advantages of aluminum with the flexibility of polyimide or other flexible dielectric materials. This type allows the PCB to be bent or folded, offering unique design possibilities for applications where space is constrained or dynamic movement is required, while still benefiting from aluminum’s heat dissipation properties. The flexible dielectric layer is bonded to a thin aluminum foil or sheet.
5. Through-Hole Aluminum PCB
In some designs, it’s necessary to have through-hole components or connections that pass through the aluminum base. Through-hole Aluminum PCBs are designed to accommodate this by electrically isolating the through-holes from the aluminum base. This is typically achieved by filling the holes with a dielectric material or using specialized manufacturing processes to ensure insulation, allowing for robust component mounting and interconnection while maintaining thermal performance.
Each type of Aluminum PCB offers a unique set of advantages and is chosen based on the specific demands of the electronic application, balancing factors such as thermal performance, circuit complexity, mechanical requirements, and cost.
Manufacturing Process of Aluminum PCBs
The manufacturing of Aluminum PCBs is a specialized process that requires precision and adherence to specific techniques to ensure optimal thermal and electrical performance. While it shares some similarities with traditional FR4 PCB manufacturing, the inclusion of the metal core introduces unique steps and considerations. Here’s a step-by-step guide to the typical manufacturing process:
1. Material Preparation
The process begins with the careful selection and preparation of raw materials. The aluminum base, typically an alloy like 1100, 5052, or 6061, is chosen for its specific thermal conductivity and mechanical properties. The dielectric insulation material, often a high-performance polymer filled with ceramic particles, is prepared to ensure consistent thickness and thermal performance. The copper foil, usually 1oz to 10oz, is also selected based on current carrying requirements.
2. Copper Foil Lamination
In this step, the copper foil is laminated onto the dielectric layer, which is then bonded to the aluminum base. This lamination process involves applying heat and pressure to create a strong, uniform bond between all three layers. The quality of this bond is crucial for both electrical insulation and efficient heat transfer.
3. Circuit Pattern Imaging
Similar to conventional PCBs, the desired circuit pattern is transferred onto the copper layer. This typically involves applying a photoresist material, exposing it to UV light through a phototool (mask) that defines the circuit layout, and then developing the photoresist to reveal the copper areas that will form the circuit traces.
4. Etching
After imaging, the exposed copper (the unwanted areas) is removed through a chemical etching process. This leaves behind the precise copper circuit patterns, including traces, pads, and component footprints. Careful control of the etching parameters is essential to achieve accurate line widths and spacing.
5. Drilling and Routing
Holes for component leads, vias, and mounting are drilled into the PCB. The board is then routed to its final dimensions and shape. This step requires specialized tooling and techniques due to the hardness of the aluminum base. For through-hole components, the holes must be electrically isolated from the aluminum layer, often by drilling oversized holes and then filling them with a non-conductive material or using specialized rivets.
6. Solder Mask Application
A solder mask, typically a green epoxy-based coating, is applied over the copper traces, leaving only the pads and component areas exposed. The solder mask protects the copper from oxidation, prevents solder bridges during assembly, and provides electrical insulation.
7. Silkscreen Printing
A silkscreen layer is printed on the PCB surface, providing component designators, polarity indicators, logos, and other markings that aid in assembly, testing, and troubleshooting.
8. Surface Finish
To ensure good solderability and protect the exposed copper pads from oxidation, a surface finish is applied. Common surface finishes include Hot Air Solder Leveling (HASL), Electroless Nickel Immersion Gold (ENIG), and Immersion Silver.
9. Electrical Testing and Quality Control
Finally, each Aluminum PCB undergoes rigorous electrical testing, such as bare board testing (BBT) to check for opens and shorts, and visual inspection to ensure quality and adherence to design specifications. Thermal performance tests may also be conducted to verify heat dissipation efficiency.
This meticulous manufacturing process ensures that Aluminum PCBs deliver the high performance and reliability required for demanding electronic applications.
Applications of Aluminum PCBs
The exceptional thermal management capabilities, durability, and reliability of Aluminum PCBs make them indispensable in a wide array of industries and applications where heat dissipation is critical. Their ability to extend component life and improve performance in high-power environments has led to their widespread adoption in various electronic devices.

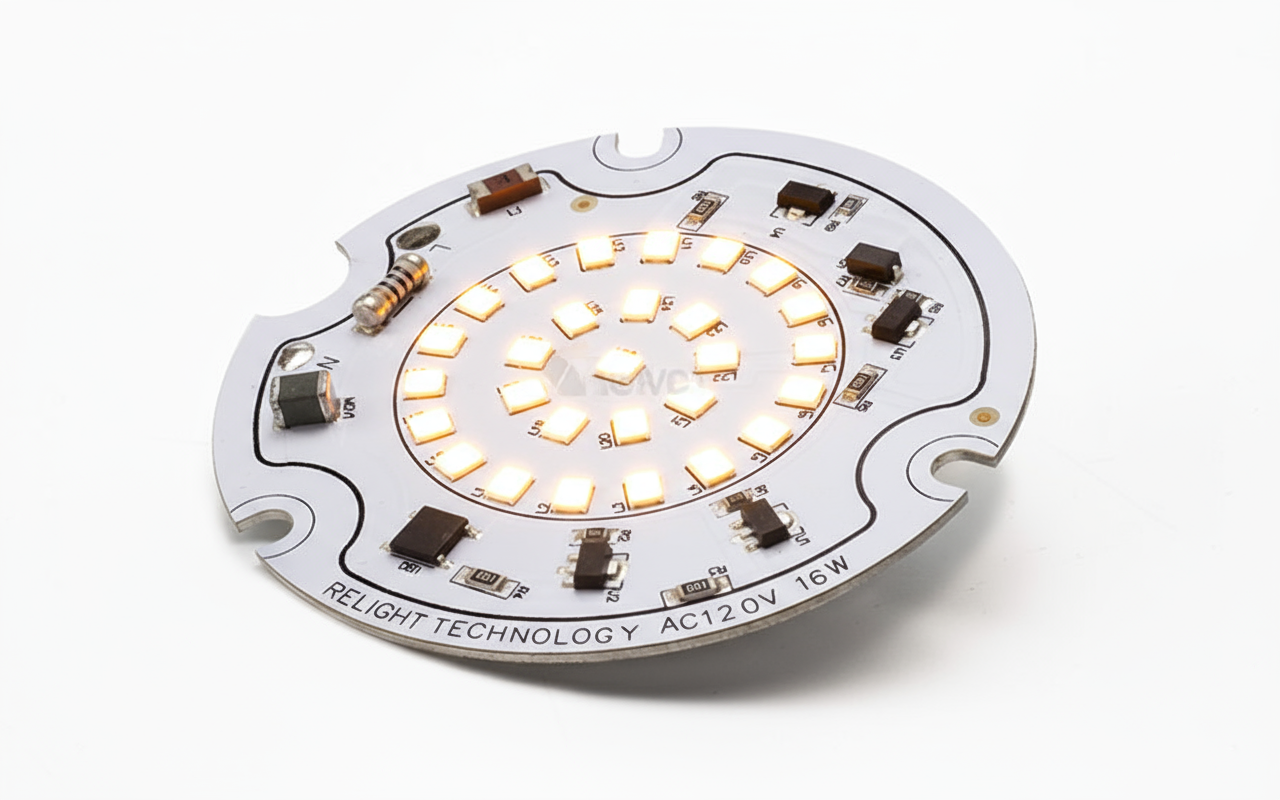

1. LED Lighting
This is perhaps the most prominent application for Aluminum PCBs. High-brightness LEDs generate significant heat, which, if not properly dissipated, can lead to reduced light output, color shift, and premature failure. Aluminum PCBs provide an ideal substrate for LED modules, efficiently drawing heat away from the LED junctions and ensuring stable performance, longer lifespan, and consistent light quality. They are found in streetlights, automotive lighting, general illumination, and high-power floodlights.
2. Power Electronics
Devices such as power supplies, voltage regulators, motor controllers, and inverters often involve high current and voltage operations, leading to substantial heat generation. Aluminum PCBs are crucial in these applications for dissipating heat from power transistors, MOSFETs, IGBTs, and other high-power components, thereby maintaining their operational stability and preventing thermal runaway. This includes applications in industrial automation, renewable energy systems (solar inverters), and uninterruptible power supplies (UPS).
3. Automotive Electronics
The automotive industry increasingly relies on Aluminum PCBs for various applications due to their ability to withstand harsh environments, vibrations, and wide temperature fluctuations. They are used in LED headlights, engine control units (ECUs), power converters, and hybrid/electric vehicle power management systems. The superior thermal performance ensures the reliability and longevity of critical electronic systems in vehicles.
4. Telecommunications Equipment
High-frequency and high-power communication systems, such as base stations, amplifiers, and filtering equipment, generate considerable heat. Aluminum PCBs help manage this heat, ensuring the stable operation and reliability of these critical infrastructure components. Their robust nature also contributes to the longevity of equipment deployed in outdoor or challenging environments.
5. Industrial Control Systems
Industrial machinery and control systems often operate continuously under demanding conditions, requiring robust and thermally efficient electronic components. Aluminum PCBs are used in motor drives, robotics, power distribution units, and other industrial automation equipment to ensure reliable operation and prevent overheating of sensitive control circuitry.
6. Medical Devices
Certain medical devices, particularly those involving high-power illumination (e.g., surgical lights) or precise temperature control, benefit from Aluminum PCBs. Their reliability and thermal stability are crucial for maintaining the accuracy and safety of medical equipment.
7. Consumer Electronics
While less common than in industrial or automotive sectors, Aluminum PCBs are also finding their way into high-end consumer electronics that demand superior thermal management, such as high-performance audio amplifiers, flat-panel displays, and certain gaming consoles where heat can impact performance and user experience.
The versatility and performance benefits of Aluminum PCBs continue to drive their adoption across new and existing markets, solidifying their role as a cornerstone technology for modern electronic design.
Aluminum PCBs represent a significant advancement in printed circuit board technology, offering a robust and highly effective solution for thermal management in modern electronics. Their unique layered structure, featuring a thermally conductive dielectric and an aluminum base, provides unparalleled heat dissipation capabilities compared to traditional FR4 boards. This superior thermal performance translates directly into enhanced reliability, extended component lifespans, and improved overall system stability, particularly in high-power and high-temperature applications.
The numerous advantages of Aluminum PCBs—including their excellent thermal conductivity, reduced thermal expansion, strong dimensional stability, high durability, environmental friendliness, and cost-effectiveness in the long run—make them an indispensable component in a wide range of industries. From the ubiquitous LED lighting sector to demanding automotive electronics, power supplies, telecommunications equipment, and industrial control systems, Aluminum PCBs are enabling the development of more efficient, reliable, and compact electronic devices.
As electronic components continue to shrink in size while increasing in power density, the challenge of managing heat will only become more critical. Aluminum PCBs are well-positioned to meet these evolving demands, offering a proven and versatile solution that ensures optimal performance and longevity for the next generation of electronic innovations. Understanding and leveraging the capabilities of Aluminum PCBs is therefore essential for engineers and designers aiming to push the boundaries of electronic design and achieve superior product performance in their products.
