Introduction
In the rapidly evolving landscape of modern electronics, where miniaturization and
enhanced functionality are paramount, the design of Printed Circuit Boards (PCBs) is a critical determinant of product success. Surface Mount Technology (SMT) and its
associated Surface Mount Devices (SMDs) have revolutionized electronicsmanufacturing, enabling higher component density and automated assembly. The selection of the appropriate SMD component package size is not merely a technical detail; it is a strategic decision that profoundly impacts a product’s performance,manufacturability, cost-effectiveness, and overall reliability. A suboptimal choice can lead to significant challenges, from signal integrity issues and thermal management problems to assembly difficulties and increased manufacturing expenses.
This comprehensive guide aims to illuminate the complexities of SMD component
package size selection. We will explore the various types and naming conventions of SMD packages, delve into the critical factors influencing their choice—including PCB real estate, electrical performance, manufacturing considerations, and cost implications—
and provide practical insights and best practices for making informed decisions. Our goal is to equip you with the knowledge necessary to select the optimal SMD component package size for your specific PCB design, ensuring a robust, efficient, and cost-effective final product.
Section 1: Understanding SMD Package Sizes
Surface Mount Devices (SMDs) are characterized by their compact size and the absence of leads that pass through the PCB. Instead, they have small metal pads or leads that are soldered directly onto the surface of the board. The ‘package size’ refers to the
standardized physical dimensions of these components, which are crucial for automated assembly processes and for ensuring compatibility with PCB footprints.
Naming Conventions: Imperial vs. Metric
SMD package sizes, particularly for passive components like resistors and capacitors, are commonly denoted by a four-digit code. This code can represent dimensions in either
imperial (inches) or metric (millimeters) units. Understanding both systems is vital for global design and manufacturing practices:
• Imperial Code (e.g., 0402, 0603, 0805, 1206): In the imperial system, the first two digits represent the length and the last two digits represent the width, both in
hundredths of an inch. For example, a 0603 package is 0.06 inches long and 0.03 inches wide.
• Metric Code (e.g., 1005, 1608, 2012, 3216): In the metric system, the first two
digits represent the length and the last two digits represent the width, both in
tenths of a millimeter. So, a 1608 metric package corresponds to 1.6 mm long and 0.8 mm wide, which is equivalent to an imperial 0603 package.
While both systems are used, the imperial code is often more prevalent in general
discussion and component datasheets, especially for common passive components. It Is essential to always verify the actual dimensions from the component Is datasheet to
avoid any discrepancies, as some manufacturers might use slightly different interpretations or have unique package designs.

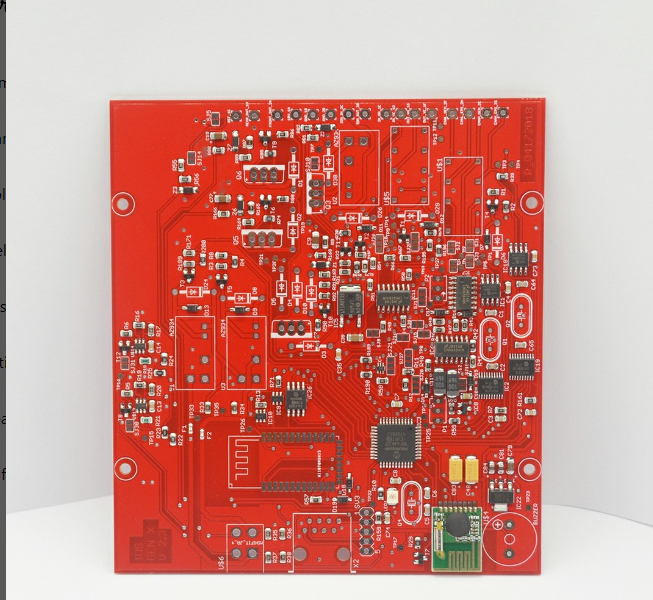

Common Package Types and Their Applications
SMD package sizes vary significantly depending on the component type and its intended function. Here Is a breakdown of common packages for different categories of SMDs:
Passive Components (Resistors, Capacitors, Inductors)
These are the most ubiquitous components on any PCB, and their package sizes have seen the most dramatic miniaturization. The common sizes, from largest to smallest, include:
• 1210 (3225 Metric): Larger, often used for higher power ratings or where space is not a primary concern. Good for manual soldering and rework.
• 1206 (3216 Metric): Still relatively large, suitable for general-purpose applications, power supplies, and where ease of handling is desired. Offers better power
dissipation than smaller sizes.
• 0805 (2012 Metric): A very common general-purpose size, offering a good balance between size, power handling, and ease of assembly. Widely used across various applications.
• 0603 (1608 Metric): One of the most popular sizes for consumer electronics due to its small footprint and good manufacturability. ItIs a sweet spot for many designs.
• 0402 (1005 Metric): Significantly smaller, used in high-density applications like smartphones, wearables, and compact modules. Requires precise pick-and-place equipment.
0201 (0603 Metric): Extremely small, found in the most compact and high-
performance devices. Challenges in handling, soldering, and rework are significant.
• 01005 (0402 Metric): The smallest commercially available package for passive components, used in cutting-edge miniaturized products. Requires highly
specialized manufacturing processes and equipment.
Integrated Circuits (ICs)
IC packages are far more diverse due to the varying number of pins, power dissipation requirements, and functional complexities. Some common types include:
• SOP (Small Outline Package) / SOIC (Small Outline Integrated Circuit):
Rectangular packages with leads on two sides, suitable for a wide range of applications. Variants include TSOP (Thin SOP) and SSOP (Shrink SOP).
• QFP (Quad Flat Package): Square packages with leads on all four sides, used for ICs with a higher pin count. Variants like TQFP (Thin QFP) and LQFP (Low-profile QFP) offer reduced thickness.
• QFN (Quad Flat No-leads): Similar to QFP but without external leads, instead
having pads on the bottom perimeter. Offers excellent thermal performance and a very small footprint, popular in mobile devices.
• BGA (Ball Grid Array): A package with an array of solder balls on its underside,
allowing for very high pin counts and excellent electrical performance. Commonly used for microprocessors, FPGAs, and memory chips. Requires X-ray inspection for assembly quality.
• LGA (Land Grid Array): Similar to BGA but uses flat pads instead of solder balls, requiring a socket or direct soldering to the PCB.
• DFN (Dual Flat No-leads): Similar to QFN but with pads on two sides only, often used for smaller ICs.
Diodes and Transistors
These active components also come in various SMD packages, often designed for specific power or signal requirements:
• SOD (Small Outline Diode): Packages like SOD-123, SOD-323, SOD-523, and SOD-923 are common for diodes, varying in size and power handling.
• SOT (Small Outline Transistor): Packages like SOT-23 (very common for small-
signal transistors), SOT-223 (for higher power), and SOT-323 are widely used for transistors and voltage regulators.
Evolution and Miniaturization
The trend in SMD package sizes has been a relentless drive towards miniaturization.
What was once considered a small package a decade ago is now considered large. This
evolution is driven by consumer demand for smaller, lighter, and more portable
electronic devices, as well as the increasing complexity and functionality required within limited physical spaces. The shift from 1206 and 0805 to 0603 and 0402 as standard sizes for many applications highlights this trend. While miniaturization offers significant
advantages in terms of board space and potentially higher operating frequencies due to reduced parasitic effects, it also introduces challenges related to manufacturing
precision, thermal management, and reworkability. The continuous development of advanced packaging technologies and assembly processes is crucial to support this ongoing trend.
Section 2: Key Factors Influencing SMD Package Size Selection
Choosing the optimal SMD component package size is a multi-faceted decision that
requires a careful balance of various design and manufacturing considerations. No single package size is universally superior; the best choice is always context-dependent, driven by the specific requirements and constraints of your Printed Circuit Board (PCB) design. Here, we delve into the primary factors that influence this critical selection.
PCB Real Estate and Density
Perhaps the most immediate and apparent factor influencing package size selection is the available space on the PCB, often referred to as ‘PCB real estate.’ In an era where electronic devices are shrinking, maximizing component density is paramount. Smaller package sizes directly translate to more components fitting into a given area, enabling:
- Miniaturization: This is the driving force behind many modern electronic
products, from smartphones and wearables to medical implants and IoT devices. Utilizing smaller components allows for a reduced overall product form factor,
making devices lighter, more portable, and aesthetically appealing. For instance, the transition from 0805 to 0402 or even 0201 passive components can free up
significant board space, allowing for more complex circuitry or a smaller end product.
- Increased Functionality: By conserving board space, designers can integrate morefeatures and functionalities into a single PCB. This might involve adding more
sensors, communication modules, processing power, or memory, all within the
same physical footprint. This is particularly relevant for High-Density Interconnect
(HDI) PCBs, which feature finer lines, smaller vias, and higher connection pad density, demanding equally compact components to fully leverage their
capabilities.
- Optimized Routing: Smaller components often mean smaller pads and less
obstruction, which can simplify the routing of traces on the PCB. This is crucial for multi-layer boards where signal integrity and efficient power delivery networks are critical. More space between components allows for wider traces (for higher
current) or better spacing for differential pairs (for high-speed signals),
contributing to improved electrical performance and reduced electromagnetic interference (EMI).
However, the pursuit of extreme miniaturization comes with trade-offs. While smaller components offer higher density, they can also complicate routing if not managed
carefully, especially in designs with numerous high-speed signals. The density of
components also directly impacts thermal management, as more heat-generating
elements are packed into a smaller area, potentially leading to localized hotspots.
Therefore, designers must balance the desire for compactness with the practicalities of routing complexity and thermal dissipation capabilities.
Electrical Performance
The physical dimensions of an SMD component package are intrinsically linked to its electrical performance, especially in high-frequency and high-power applications. The choice of package size can significantly influence parasitic effects, signal integrity, and thermal management.
- Parasitic Inductance and Capacitance: Smaller packages generally exhibit lowerparasitic inductance and capacitance due to shorter lead lengths and smaller
physical dimensions. This is a significant advantage in high-frequency circuits,
where parasitic elements can degrade signal quality, introduce noise, and limit
bandwidth. For instance, in RF (Radio Frequency) circuits or high-speed digital
designs, using smaller passive components (e.g., 0402 or 0201) can help maintain signal integrity and achieve desired impedance matching. Larger packages, with their longer leads and larger pads, can introduce unwanted parasitic inductance and capacitance, leading to signal reflections, ringing, and increased power
consumption.
- High-FrequencyApplications: For applications operating at gigahertz
frequencies, even minute parasitic effects can be detrimental. Smaller SMD
packages help minimize these effects, allowing for better impedance control and
reduced signal loss. This is why you often see the smallest available components in
wireless communication modules, high-speed data interfaces, and advanced computing platforms.
- Power Dissipation and Thermal Management: While smaller packages offer
advantages in high-frequency performance and density, they present significant
challenges in thermal management. Components generate heat during operation, and this heat must be effectively dissipated to prevent overheating, which can lead to performance degradation, reduced lifespan, or even component failure. Larger packages typically have a larger surface area and more thermal mass, allowing for better heat dissipation. For components that dissipate significant power (e.g.,
power resistors, voltage regulators, power transistors), choosing a larger package size (e.g., 1206 or even larger for power resistors, or SOT-223, DPAK for power
transistors) is often necessary to manage heat effectively. In designs with high
power density, designers must carefully consider the thermal resistance of the
package, the PCB Is thermal conductivity, and the need for additional cooling
solutions like heatsinks or thermal vias. Ignoring thermal considerations can lead to localized hotspots, affecting not only the component in question but also
adjacent components and the overall reliability of the PCB assembly.
Therefore, a trade-off often exists between miniaturization for signal integrity and larger packages for thermal performance. Designers must analyze the power budget of their
circuit, identify heat-generating components, and select package sizes that can safely
dissipate the expected thermal load while meeting electrical performance requirements.
Manufacturing and Assembly (DFM – Design for Manufacturability)
The ease and cost of manufacturing are paramount considerations in PCB design, and
the choice of SMD package size plays a pivotal role in Design for Manufacturability (DFM). Smaller components, while offering density advantages, can introduce significant
challenges during the assembly process.
- Pick–and–PlaceMachineCapabilities: Modern PCB assembly lines rely heavily on automated pick-and-place machines to precisely position SMDs onto the solder
paste-applied pads. While these machines are incredibly accurate, there are
practical limits to the smallest components they can reliably handle. Extremely
small packages like 0201 and 01005 require high-precision, high-speed pick-and-
place equipment with advanced vision systems. Not all contract manufacturers
(CMs) possess the capabilities for handling these ultra-small components. Using
larger, more common sizes (e.g., 0603, 0805) can significantly broaden the choice of CMs and potentially reduce assembly costs due to wider availability of compatible equipment and higher yield rates.
- SolderingProcessConsiderations:
◦ Reflow Soldering: This is the most common method for soldering SMDs. The PCB with solder paste and components is passed through a reflow oven,
where the solder paste melts and forms electrical connections. Smaller
components are more susceptible to issues like tombstoning (where one end of the component lifts off the pad) or component shifting during reflow due to surface tension imbalances. Proper pad design, stencil aperture design, and
reflow profile optimization are crucial to mitigate these issues, especially with smaller packages.
◦ Wave Soldering: While primarily used for through-hole components, wave soldering can sometimes be used for single-sided SMT boards or for mixed- technology boards. However, it is generally not recommended for fine-pitch SMDs or very small packages due to the risk of solder bridging and
component wash-away.
- Rework and Repair Challenges: The smaller the component, the more
challenging and delicate the rework and repair processes become. Removing and
replacing a tiny 0201 resistor without damaging adjacent components or the PCB
itself requires specialized tools, skilled technicians, and often a microscope. This
significantly increases the time and cost associated with repairs and can impact the overall yield and reliability of the product. Larger components (e.g., 1206, 0805) are much easier to handle and rework, making them preferable for prototypes, low-
volume production, or products where field repairability is a key requirement.
When considering manufacturing and assembly, it is always advisable to engage with
your chosen PCB assembly partner early in the design phase. Their expertise can provide invaluable insights into DFM best practices, helping you select package sizes that are not only functionally appropriate but also cost-effective and reliable to manufacture. For
comprehensive PCB assembly services that can handle a wide range of component package sizes and complexities, consider exploring the capabilities offered by
experienced providers like bgpcba. Their expertise in advanced assembly techniques can be crucial for successful product realization.
Cost Implications
The financial aspect of component selection is a critical consideration for any product development, and SMD package size directly influences both component cost and
assembly cost.
- Component Cost Differences: Generally, the smallest and largest component
package sizes tend to be more expensive than the mid-range, commonly used sizes (e.g., 0603, 0805). Ultra-small components (like 01005, 0201) are pricier due to the
advanced manufacturing processes and tighter tolerances required for their
production. Conversely, very large or specialized packages might also command a premium due to lower production volumes or specific material requirements. The sweet spot for cost-effectiveness often lies in the most widely adopted package
sizes, as they benefit from economies of scale in manufacturing.
- Assembly CostVariations: As discussed in the DFM section, smaller components demand more sophisticated and precise assembly equipment, which can increase the overall assembly cost per board. The risk of assembly defects (e.g.,
tombstoning, bridging) also tends to be higher with smaller components,
potentially leading to increased rework costs and lower yields. For high-volume production, even a slight increase in defect rates can translate into significant financial losses. Therefore, while smaller components might reduce the raw
material cost of the PCB itself (due to less board space), they can inflate the assembly and testing costs.
- Overall Project Budget Impact: Designers must perform a holistic cost analysis,considering notjust the unit cost of components but also the impact on PCB
fabrication, assembly, testing, rework, and even packaging and shipping (as
smaller products can lead to smaller packaging and reduced shipping costs).
Sometimes, opting for a slightly larger, more manufacturable component can lead to significant savings in the overall production budget by reducing assembly
complexities and improving yield rates.
Component Availability and Lead Time
Supply chain resilience and component availability have become increasingly critical
factors in recent years. The choice of SMD package size can directly impact your ability to source components reliably and within acceptable lead times.
- Popular vs. Less Common Package Sizes: Widely used package sizes (e.g., 0603,
0805 for passives; SOT-23, SOIC for ICs) generally have better availability from
multiple manufacturers and distributors. This broad supply base provides greater flexibility, reduces the risk of single-source dependencies, and often results in more competitive pricing. Components in these popular packages are typically produced in massive volumes, ensuring consistent supply.
- Impact ofSupply Chain Disruptions: During periods of component shortages orsupply chain disruptions, less common or cutting-edge package sizes (like 01005 or highly specialized IC packages) can become extremely difficult to procure, leading to extended lead times, inflated prices, or even production halts. Designing with
readily available package sizes can significantly mitigate these risks, ensuring a smoother production flow.
- Long-TermAvailability and Obsolescence: When designing products with long
lifecycles, considering the long-term availability of components is crucial. Very new or very old package sizes might face obsolescence issues sooner than those in the mainstream. Choosing a package size that is widely adopted and has a stable
supply chain can help ensure the product remains manufacturable for its intended lifespan.
Engaging with component distributors and supply chain experts early in the design
process can provide valuable insights into current market conditions, lead times, and
potential risks associated with specific package choices. This proactive approach can
prevent costly delays and redesigns down the line. For reliable sourcing and assembly of components, including those with varying package sizes, partnering with experienced
PCB manufacturing and assembly services is key. For more information on how
professional PCB assembly services can streamline your production process, visit bgpcba.
Section 3: Practical Application and Best Practices
Making the right choice for SMD component package sizes goes beyond understanding the theoretical factors; it involves practical application, leveraging design tools, and
staying abreast of future trends. Here are some best practices to guide your decision- making process.
Matching Package Size to Application
The optimal package size is highly dependent on the end application and its specific requirements:
- ConsumerElectronics(Smartphones, Wearables, IoT Devices): These
applications are characterized by extreme miniaturization, high functionality in a small form factor, and often high-volume production. Here, the smallest available package sizes (e.g., 0402, 0201, 01005 for passives; QFN, BGA for ICs) are frequently employed to achieve the desired compactness. The design emphasis is on
maximizing density, optimizing signal integrity for high-frequency operations, and managing thermal dissipation within tight constraints. While manufacturing costs per unit might be higher due to precision requirements, the overall product value and market demand often justify this.
- Industrial andAutomotiveApplications: Reliability, robustness, and long-term stability are paramount in these sectors. While miniaturization is still a factor, it often takes a backseat to performance under harsh conditions (temperature
extremes, vibration) and ease of long-term maintenance. Larger, more robust
packages (e.g., 0805, 1206 for passives; SOIC, QFP for ICs) are often preferred due to their better mechanical stability, superior thermal performance, and easier
reworkability. These applications also demand components that meet specific industry standards (e.g., AEC-Q200 for automotive components).
- Prototyping and Hobbyist Projects: For initial prototypes, low-volume runs, or
educational projects, ease of handling and manual soldering capabilities are often prioritized. Larger package sizes (e.g., 0805, 1206 for passives; SOIC, SOT-23 for ICs) are highly recommended. These components are less prone to damage during
manual assembly, easier to inspect, and more forgiving during rework, significantly speeding up the development cycle and reducing frustration.
Design Tools and Libraries
Modern Electronic Design Automation (EDA) tools are indispensable for managing the
complexities of PCB design, including component selection and footprint management.
- AccurateFootprints and CAD Libraries: Ensure that your CAD software libraries contain accurate footprints for all chosen SMD components. A footprint (or land
pattern) defines the physical layout on the PCB where the component will be
soldered. Incorrect footprints can lead to assembly issues, short circuits, or open circuits. Always verify the footprint dimensions against the component
manufacturer’s datasheet. Many component manufacturers provide CAD models and footprints, or you can use third-party library providers. Maintaining a well-
organized and verified component library is a critical best practice.
- DatasheetVerification: Never rely solely on generic package size codes.Always
consult the component’s official datasheet for precise dimensions,
recommended land patterns, thermal characteristics, and electrical specifications. Datasheets are the authoritative source of information and can prevent costly
errors.
- DesignRuleChecks (DRC): Utilize the Design Rule Check features within your EDA software. DRCs can identify potential issues such as components being too close together, insufficient trace spacing, or incorrect pad sizes, helping to catch errors related to package size selection early in the design process.
Future Trends in SMD Technology
The evolution of SMD technology is continuous, driven by the ever-increasing demands for performance, miniaturization, and integration. Designers must be aware of these
trends to future-proof their designs and leverage new capabilities.
- Continued Miniaturization: The push towards smaller components will persist.While01005 is currently the smallest widely available passive package, research
and development continue for even smaller sizes (e.g., 008004). This will further challenge manufacturing processes and require even more advanced assembly techniques.
- 3D Packaging and System-in-Package (SiP): Beyond simply shrinking individualcomponents, the industry is moving towards integrating multiple components andeven entire systems into a single package. 3D packaging involves stacking dies
vertically, while System-in-Package (SiP) integrates multiple ICs, passive
components, and sometimes even antennas into a single module. These
technologies offer unprecedented levels of integration and miniaturization, blurring the lines between component and subsystem.
- Embedded Components:Another emerging trend is the embedding of passive
components (resistors, capacitors) directly within the PCB layers. This frees up
surface space, reduces parasitic effects, and can further miniaturize the overall
assembly. While still a niche technology, it holds promise for highly compact and high-performance applications.
- Advanced Substrate Materials: The development of new PCB substrate materialswith improved dielectric properties and thermal conductivity will also play a
crucial role in enabling the use of smaller, higher-performance components, especially in high-frequency and high-power applications.
Staying informed about these advancements and collaborating with cutting-edge manufacturing partners is essential for designers looking to push the boundaries of electronic product design. The landscape of PCB design is constantly evolving, and adapting to these changes is key to innovation and competitive advantage.
The selection of the appropriate SMD component package size is a pivotal decision in
Printed Circuit Board (PCB) design, influencing everything from the physical dimensions and aesthetic appeal of the final product to its electrical performance,
manufacturability, and cost-effectiveness. As we have explored, this choice is not a one- size-fits-all solution but rather a complex optimization problem that requires a holistic understanding of various interconnected factors.
We began by demystifying the common SMD package sizes and their naming
conventions, highlighting the relentless trend towards miniaturization driven by
consumer demand for smaller, lighter, and more functional electronic devices. We then delved into the critical factors that must be weighed: the precious PCB real estate and
the desire for higher component density; the intricate relationship between package size and electrical performance, particularly in high-frequency and power-intensive applications; the profound impact on manufacturing and assembly processes, including considerations for pick-and-place capabilities, soldering techniques, and rework
challenges; and finally, the significant cost implications and supply chain considerations that can make or break a project Is budget and timeline.
The key takeaway is that successful PCB design hinges on a balanced approach. While smaller packages offer undeniable advantages in terms of miniaturization and often
improved high-frequency performance, they introduce complexities in manufacturing, thermal management, and rework. Conversely, larger packages, while easier to handle and often more robust thermally, consume more board space and may not be suitable for highly compact designs. The optimal choice always aligns with the specific
requirements of the application, the available manufacturing capabilities, and the overall project constraints.
As the electronics industry continues its rapid evolution, marked by ongoing miniaturization, advanced packaging technologies like 3D integration and System-in- Package, and the emergence of embedded components, the importance of informed
component selection will only grow. Designers must remain vigilant, continuously updating their knowledge, leveraging sophisticated EDA tools, and fostering strong collaborations with their manufacturing partners. By meticulously considering all these factors, engineers can make strategic decisions regarding SMD component package sizes, thereby ensuring the development of robust, efficient, and innovative electronic products that meet the demands of tomorrow Is technological landscape.
Embrace these principles in your next PCB design project to navigate the complexities of component selection with confidence and precision.
PCBDesign #SMDComponents #SurfaceMountTechnology #ElectronicsManufacturing #DFM #DesignForManufacturability #ThermalManagement #SignalIntegrity #ComponentSelection #Miniaturization #HighDensityInterconnect #HDI #ReflowSoldering
