Industrial control systems form the nervous system of modern manufacturing, where precision PCBA manufacturing determines operational efficiency and reliability. BGPCBA delivers turnkey PCBA solutions optimized for European industrial control applications, ensuring compliance with stringent RoHS, REACH, and IATF 16949 standards.
Why Industrial Control Demands Specialized PCBA Design
Industrial control PCBA must withstand harsh environments: vibration, temperature extremes (-40°C to +85°C), EMI interference, and 24/7 operation. Key challenges include:
-
High Reliability Requirements: MTBF exceeding 100,000 hours, with redundant power circuits and watchdog timers.
-

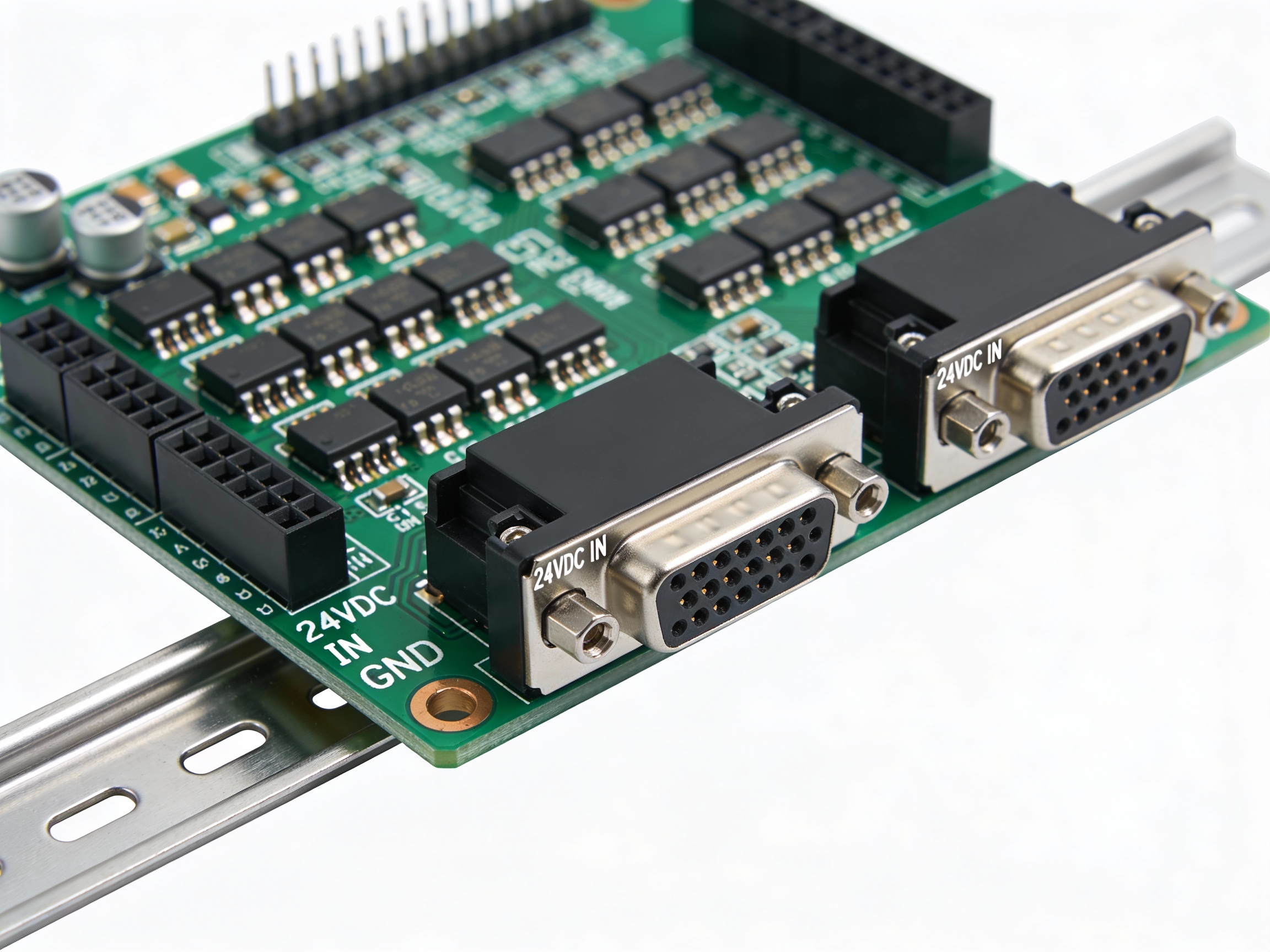

Compact Form Factors: Fitting into DIN-rail enclosures (100mm x 22.5mm modules) demands 4-8 layer HDI PCBs with 0.15mm vias.
-
Mixed Signal Integration: Combining PLC logic (24VDC I/O), analog sensors (4-20mA), and Ethernet communication on one board.
-
Rapid Prototyping Needs: European OEMs require 3-5 day turnarounds for proof-of-concept boards before scaling to 500-2000 pcs/month.
BGPCBA’s 5000㎡ SMT facility handles these demands with 6 high-speed lines (Panasonic, Yamaha) and full AOI/X-Ray inspection, achieving <50ppm defect rates.
Essential PCBA Features for Industrial Automation
Power Supply Robustness
Industrial PCBA power sections use wide-input DC-DC converters (9-36VDC input, 5V/3.3V/24V outputs) with TVS diodes and ferrite beads for surge protection (IEC 61000-4-5 compliant). BGPCBA sources automotive-grade components like MORNSUN VRA2412ZP series for ±12V isolated outputs up to 416mA.
I/O Interface Design
Typical configurations:
-
16x Digital Inputs (24VDC, opto-isolated)
-
8x Digital Outputs (relay or MOSFET, 2A@24V)
-
4x Analog Inputs (0-10V/4-20mA, 16-bit ADC)
-
RS485/Modbus RTU for PLC communication
PCB layout prioritizes signal integrity: ground planes separate analog/digital sections, Kelvin connections for current sensing, and conformal coating (IPC-CC-830) for humidity protection.
Communication Stack
Modern industrial control integrates:
-
Ethernet (10/100Mbps, Industrial RJ45)
-
Profinet/EtherCAT for real-time control
-
CAN bus for motor drives
-
Wireless options (LoRaWAN, NB-IoT)
BGPCBA’s 0.3mm BGA assembly supports ESP32/ESP8266 modules for edge computing, with on-board antennas tuned for EU frequency bands (863-870MHz).
BGPCBA’s Proven Industrial Control Capabilities
With ISO9001 and IATF16949 certifications, BGPCBA specializes in small-to-medium batch PCBA (1-5000pcs) tailored for European industrial OEMs. Our capabilities include:
| Feature | BGPCBA Specification |
|---|---|
| Max Board Size | 510mm × 460mm |
| Layer Count | 1-36L FR4/Metal Core |
| Min Trace/Space | 3mil/3mil |
| Components | 0201 to 0.3mm pitch BGA |
| Inspection | AOI, ICT, FCT, X-Ray |
| Conformal Coating | Selective spray, UV cure |
| Functional Testing | Custom jigs, 100% coverage |
Case Study: A German automation firm needed 200pcs of 6-layer PLC controller PCBA. Challenges: 24VDC isolation, Profinet stack, and Class 1 Div 2 compliance. BGPCBA delivered DFM feedback in 24hrs, prototypes in 4 days, and production in 10 days—40% faster than their previous Asian supplier.
Overcoming Common Industrial PCBA Pain Points
Thermal Management
High-power MOSFETs (for motor control) and processors generate 5-15W heat. BGPCBA employs:
-

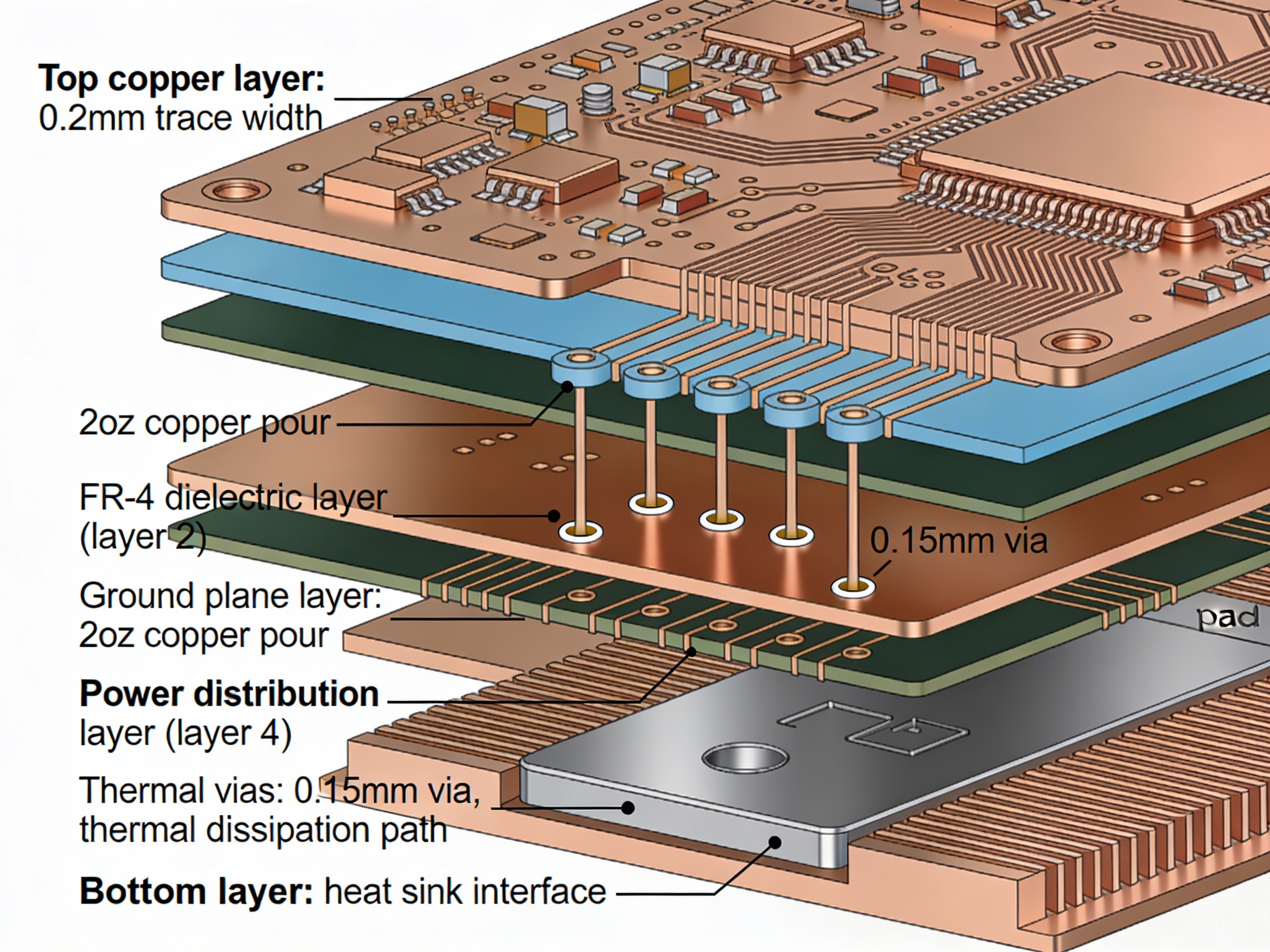

2oz copper pours with thermal vias
-
Aluminum MCPCB for LED drivers
-
Silicone thermal pads under ICs
EMC Compliance
EN 55011 Class A certification requires careful PCB stackup: 4-layer minimum with dedicated ground planes. BGPCBA’s reflow ovens (VITRONICS-SOLTEC) ensure void-free soldering for consistent impedance control.
Supply Chain Reliability
Component shortages (e.g., MCUs, power semis) disrupt European production. BGPCBA maintains strategic stockpiles of industrial-grade parts and offers full turnkey procurement with 99.8% on-time delivery.
Future-Proofing Industrial Control PCBA
Industry 4.0 drives convergence of OT/IT:
-
Edge AI: TensorFlow Lite on ARM Cortex-M7 for predictive maintenance
-
TSN (Time-Sensitive Networking): Deterministic Ethernet for motion control
-
Functional Safety: SIL2/PLc compliance with ASIL-B components
BGPCBA supports these trends with HDI capabilities (microvias, blind/buried vias) and firmware flashing for secure bootloaders.
Why European OEMs Choose BGPCBA for Industrial Control PCBA
-
EU-Focused Expertise: Deep understanding of CE marking, Machinery Directive 2006/42/EC, and Low Voltage Directive 2014/35/EU.
-
Small Batch Excellence: No MOQ, rapid prototyping (24-72hrs), scalable to production.
-
Transparent Communication: English/German-speaking PMs, daily progress updates via WhatsApp/WeChat.
-
Cost-Effective Quality: 30-50% savings vs. European EMS while maintaining IATF16949 standards.
-
End-to-End Service: From Gerber review to functional test jigs and conformal coating.
