The relentless pursuit of miniaturization and enhanced performance in electronic devices has made the High-Density Interconnect (HDI) Printed Circuit Board (PCB) a cornerstone of modern technology. From the sleekest smartphones to the most advanced automotive systems, HDI PCBs are the silent enablers, packing more functionality into smaller, lighter footprints. This article explores the evolution of HDI technology, analyzes the current market landscape, and forecasts the future trends that will continue to shape the electronics industry.
The Technological Leap: From Traditional PCB to HDI
Traditional PCBs, with their through-hole vias and wider trace/space requirements, quickly became a bottleneck as component density increased. The advent of HDI technology marked a significant paradigm shift.
HDI PCBs are defined by their higher wiring density per unit area compared to conventional PCBs. This is primarily achieved through the use of:

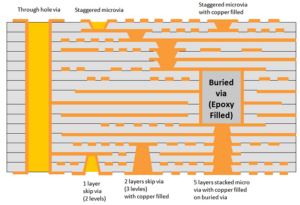

- Microvias:Vias with a diameter of 150µm or less, typically created using laser drilling.
- Blind and Buried Vias:Vias that do not pass through the entire board, allowing for more routing space on inner and outer layers.
- Finer Lines and Spaces:Reducing the width of copper traces and the distance between them, often down to 50µm/50µm or less.
The manufacturing process for HDI boards is characterized by sequential lamination or build-up processes, where layers are added one by one, with microvias drilled and plated at each stage. This contrasts sharply with the single lamination process of standard PCBs.
Market Dynamics and Growth Drivers
The global HDI PCB market is experiencing robust growth, driven by several key factors. Market valuations vary, but consensus suggests a strong Compound Annual Growth Rate (CAGR) through the next decade. For instance, some reports project the market to grow from approximately USD 18-19 billion in 2024 to over USD 34 billion by 2032, reflecting a CAGR of around 8% [1] [2].
Key Growth Drivers:
- Consumer Electronics Miniaturization:The continuous demand for thinner, lighter, and more feature-rich devices—smartphones, tablets, and wearables—is the primary engine for HDI adoption. These devices require maximum component density in minimal space.
- 5G and IoT Expansion:The rollout of 5G networks and the proliferation of Internet of Things (IoT) devices necessitate high-speed signal integrity and complex routing. HDI boards, particularly those with advanced materials, are crucial for managing the high frequencies and data rates of 5G.
- Automotive Electronics:Modern vehicles are becoming “computers on wheels,” with advanced driver-assistance systems (ADAS), infotainment, and electric vehicle (EV) battery management systems. These applications demand high reliability and density, making HDI a standard requirement.
- Medical Devices:Portable and implantable medical devices, such as diagnostic equipment and monitoring systems, rely on HDI for their compact size and high precision.
Regional Landscape:
The Asia-Pacific (APAC) region dominates the HDI PCB market, primarily due to the concentration of major electronics manufacturing hubs in countries like China, South Korea, Taiwan, and Japan. APAC is both the largest producer and consumer of HDI PCBs. North America and Europe also represent significant markets, driven by demand in the aerospace, defense, and high-end computing sectors.
The Next Frontier: Any-Layer HDI and SLP
The evolution of HDI is not static; the industry is constantly pushing the boundaries of density, leading to two major advanced technologies: Any-Layer HDI and Substrate-Like PCB (SLP).
Any-Layer HDI (AL-HDI)

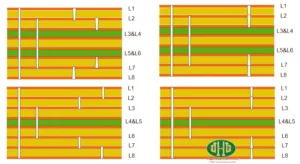

Any-Layer HDI, also known as Every-Layer Interconnect (ELIC), represents the pinnacle of current HDI technology. In a standard HDI board, microvias only connect adjacent layers. In contrast, AL-HDI allows for microvias to connect any layer to any other layer within the PCB structure.
| Feature | Standard HDI (Type II/III) | Any-Layer HDI (Type IV/V/VI) |
| Via Structure | Sequential build-up with staggered or stacked microvias. | Microvias in every layer, allowing direct connection between any two layers. |
| Density | High | Extremely High |
| Complexity | Moderate to High | Very High |
| Application | High-end smartphones, laptops, networking equipment. | Flagship smartphones, high-performance computing (HPC), complex medical devices. |
AL-HDI significantly reduces the overall size and weight of the PCB while maximizing routing efficiency, making it essential for premium mobile devices.

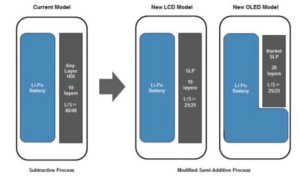

Substrate-Like PCB (SLP)
SLP is not strictly a PCB but a transitional technology bridging the gap between traditional PCBs and IC substrates. It is often referred to as Ultra HDI.
SLP achieves even finer line/space widths, typically 30µm/30µm or less, pushing the limits of what is possible with standard PCB manufacturing. This level of miniaturization is critical for the latest generation of smartphones and advanced semiconductor packaging.
SLP vs. HDI:
- Line/Space:SLP (30µm/30µm or less) is significantly finer than typical HDI (50µm/50µm).
- Manufacturing:SLP requires more precise manufacturing techniques, often borrowing processes from IC substrate fabrication, such as semi-additive process (SAP) or modified semi-additive process (mSAP).
- Cost:SLP is considerably more expensive than AL-HDI due to the stringent process control and specialized equipment required.
SLP’s adoption is currently concentrated in flagship mobile devices, but its use is expected to expand as the cost of manufacturing decreases and demand for ultra-miniaturization grows across other sectors.
Manufacturing Challenges and Innovations
The push towards higher density introduces significant manufacturing challenges:
- Microvia Formation:Laser drilling is the standard method, but achieving consistent, high-quality microvias, especially for stacked and filled structures in AL-HDI, requires precise control over laser parameters and material selection.
- Fine Line Etching:Maintaining the integrity of ultra-fine lines (e.g., 30µm) requires advanced etching techniques and materials. The mSAP process, which involves depositing a thin layer of copper and then selectively plating and etching, is becoming the preferred method for SLP and Ultra HDI.
- Material Selection:High-speed data transmission demands low-loss dielectric materials (low Dk/Df) to maintain signal integrity. The selection of resins and laminates that can withstand the multiple lamination cycles of build-up processes is critical.
- Yield Management:As complexity increases, the manufacturing yield tends to decrease. Advanced inspection and testing methods, including automated optical inspection (AOI) and electrical testing, are essential for maintaining profitability.
Future Outlook: The Road Ahead
The future of the HDI PCB industry is intrinsically linked to the broader trends in electronics:
- Integration with Advanced Packaging
The line between PCB and IC substrate is blurring. Future HDI and SLP boards will integrate more closely with advanced packaging technologies like System-in-Package (SiP) and Chip-on-Board (CoB). This integration will lead to even smaller, more powerful modules.
- Focus on Thermal Management
With increased component density comes higher power dissipation and thermal challenges. Future HDI designs will need to incorporate advanced thermal management solutions, such as embedded copper coins, thermal vias, and specialized heat-dissipating materials, to ensure reliability.
- Sustainability and Green Manufacturing
The industry is under pressure to adopt more sustainable practices. This includes developing halogen-free laminates, reducing waste from etching processes, and improving energy efficiency in manufacturing. “Green” HDI is becoming a significant focus for leading manufacturers.
- AI and Automation in Production
Artificial Intelligence (AI) and machine learning are being deployed to optimize the manufacturing process, from design-for-manufacturability (DFM) checks to real-time process control and defect detection in AOI systems. This automation will be key to improving yields and reducing the cost of complex AL-HDI and SLP boards.
