Introduction: The Critical Role of the Solder Mask
In the intricate world of Printed Circuit Boards (PCBs), the copper traces and component pads often steal the spotlight. However, a less visible, yet fundamentally critical layer—the solder mask—is the true guardian of the board’s long-term reliability and functionality. Often recognized simply as the green coating on a PCB, the solder mask is a thin, protective polymer layer applied over the copper traces, serving as an essential insulator and shield.
Its primary function is to prevent solder bridges—unintended electrical connections between adjacent pads or traces—during the soldering process, particularly in high-density Surface Mount Technology (SMT) assembly. Beyond this, the solder mask protects the underlying copper from oxidation, corrosion, and environmental contaminants, ensuring the longevity and performance of the electronic device . For engineers, designers, and manufacturers, a deep understanding of the solder mask’s materials, thickness, design rules, and application process is paramount to achieving high-yield manufacturing and robust product reliability.
What is Solder Mask and Why Does it Matter?
The solder mask is a permanent coating that covers all areas of the PCB except for the pads, vias, and test points that require soldering or electrical contact. It is a photolithographic process, meaning the material is applied to the entire board and then selectively removed from the areas where solder is intended to adhere.
The importance of the solder mask extends across several key areas:
•Preventing Solder Bridges: This is its most crucial role. By insulating the copper traces, it ensures that molten solder only adheres to the exposed pads, preventing short circuits, especially as component density increases and trace widths shrink.
•Insulation and Protection: It acts as a dielectric layer, providing electrical insulation and protecting the copper from physical damage, moisture, and chemical exposure, which can lead to corrosion and signal integrity issues.
•Component Alignment: The precise openings in the solder mask (known as the solder mask defined pads or non-solder mask defined pads) help to define the soldering area, aiding in the accurate placement of fine-pitch components during automated assembly.
Solder Mask Materials and Types
The choice of solder mask material is dictated by the PCB’s application, cost constraints, and the required level of resolution. The three primary types of solder mask are:
1. Liquid Photoimageable (LPI) Solder Mask
LPI is the industry standard and most widely used type today. It is an epoxy-based ink that is applied as a liquid and then imaged using a photolithography process.
|
Feature
|
Description
|
|
Application
|
Screen printing, curtain coating, or spraying.
|
|
Process
|
Applied, dried, exposed to UV light through a phototool, developed (unexposed areas washed away), and finally cured.
|
|
Resolution
|
Excellent. Capable of fine-pitch features and high-density boards.
|
|
Durability
|
High chemical and thermal resistance.
|
|
Cost
|
Moderate, offering the best balance of performance and price.
|
2. Dry Film Photoimageable (DFSM) Solder Mask
DFSM is a pre-formed sheet of solder mask material that is vacuum-laminated onto the PCB.
|
Feature
|
Description
|
|
Application
|
Vacuum lamination.
|
|
Process
|
Laminated, exposed to UV light, developed, and cured.
|
|
Resolution
|
Good, but generally lower than LPI due to the film thickness.
|
|
Durability
|
Very uniform thickness, excellent for protecting sharp edges and through-holes.
|
|
Cost
|
Higher than LPI, often used for specific applications requiring high uniformity.
|
3. Liquid Epoxy Solder Mask (Screen Printed)
This is the oldest and simplest type, applied directly through a screen printing process.
|
Feature
|
Description
|
|
Application
|
Screen printing.
|
|
Process
|
Applied and thermally cured.
|
|
Resolution
|
Low. Not suitable for fine-pitch or high-density PCBs.
|
|
Durability
|
Good, but less resistant to chemicals and heat than LPI.
|
|
Cost
|
Lowest cost option.
|

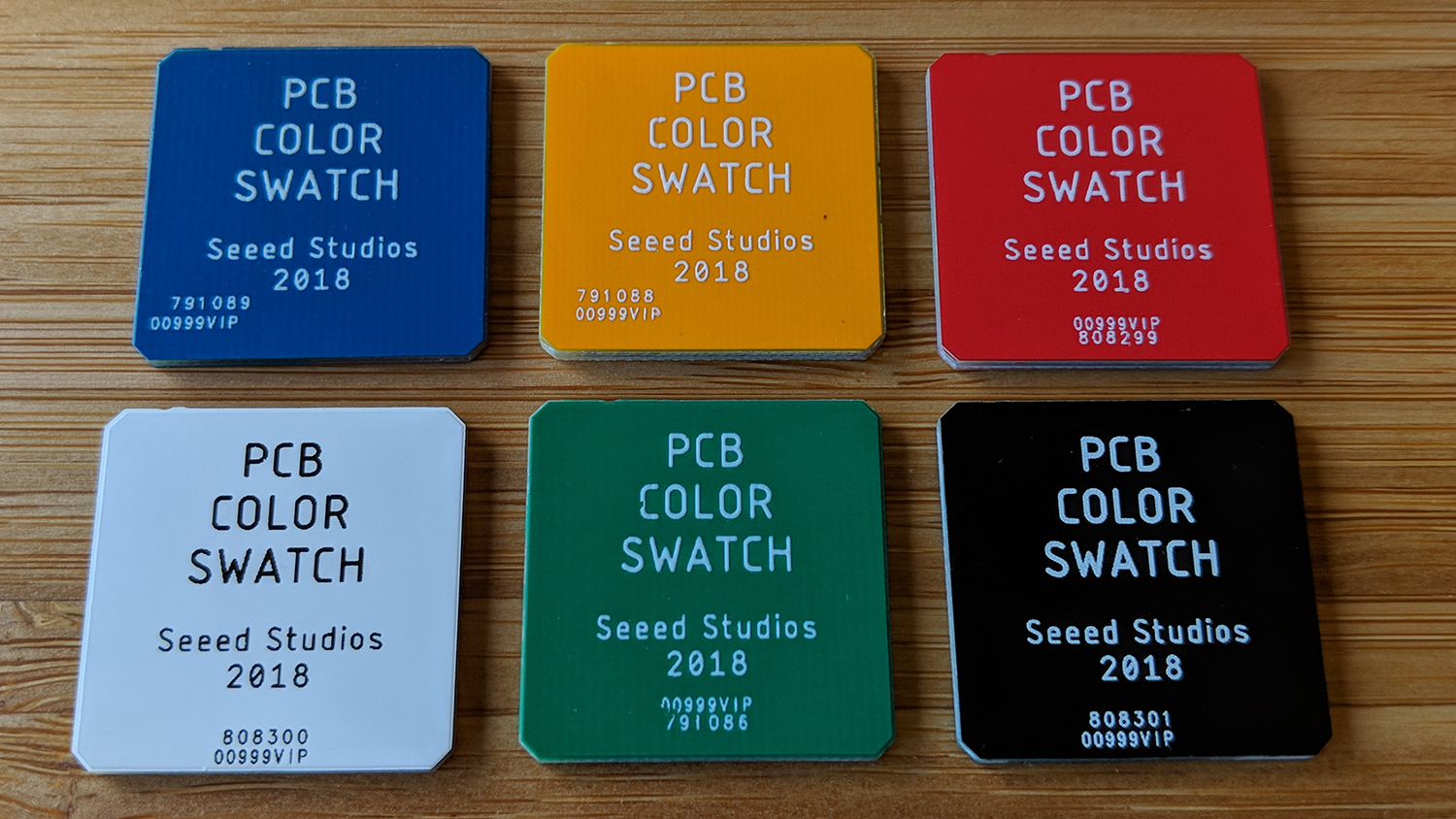

The Color Spectrum: Beyond the Green
While green remains the most common and cost-effective color due to its historical use and superior contrast for inspection, solder masks are available in a variety of colors, each with specific trade-offs :
•Green: Best for visual inspection (AOI/AXI) and high resolution.
•Red, Blue, Black: Used for aesthetic purposes or to differentiate board revisions. Black and white offer the lowest contrast, making inspection more challenging, but are often chosen for consumer electronics.
•Yellow/Clear: Less common, but sometimes used for specific optical requirements.
Thickness and Reliability: A Delicate Balance
The thickness of the solder mask is a critical parameter that directly impacts the PCB’s electrical performance and mechanical reliability. Solder mask thickness is typically measured in micrometers (µm) and is not uniform across the board.
Factors Affecting Thickness
1.Copper Topography: The solder mask tends to be thinner over the copper traces and thicker in the open areas between traces. This is known as the “solder mask relief” or “air gap” .
2.Application Method: Screen printing generally results in less uniform thickness than curtain coating or spraying.
3.Design Density: On high-density boards with fine lines and spaces, achieving adequate coverage without excessive thickness is a challenge.
Recommended Thickness
For LPI solder mask, the typical final thickness is:
•Over Copper Traces: 10 µm to 30 µm (0.01 mm to 0.03 mm) .
•Over Laminate (Open Areas): 20 µm to 50 µm.
A sufficient thickness over the copper traces is essential for dielectric strength and protection against physical damage. However, excessive thickness can lead to issues like “solder mask bleed” or poor adhesion, especially on large, flat areas.
Design Considerations: DFM for Solder Mask
The most common solder mask defects are not manufacturing errors but rather design rule violations. Design for Manufacturability (DFM) rules for the solder mask layer are crucial for ensuring a high-yield, reliable board.
1. Solder Mask Clearance (Annular Ring)
The solder mask opening must be slightly larger than the copper pad it exposes. This difference is the solder mask clearance.
•Typical Clearance: 0.05 mm (2 mils) to 0.1 mm (4 mils) per side, or 0.1 mm to 0.2 mm total .
•Purpose: To account for manufacturing tolerances and slight misalignment during the imaging process. If the clearance is too small, the mask may partially cover the pad, leading to poor solder joint formation (a “solder mask defined pad” when it should be “non-solder mask defined”).
2. Solder Mask Dam (Web)
A solder dam is the strip of solder mask material that separates two adjacent pads. This dam is the primary defense against solder bridging.
•Minimum Dam Width: The industry standard minimum width for a reliable solder dam is typically 0.1 mm (4 mils) .
•Impact: If the spacing between pads is too small (e.g., less than 0.2 mm), the manufacturer may not be able to reliably create a dam, increasing the risk of shorts. Designers must be aware of their manufacturer’s minimum dam width capability.
3. Solder Mask Defined (SMD) vs. Non-Solder Mask Defined (NSMD) Pads
This distinction is critical for fine-pitch components like Ball Grid Arrays (BGAs) and Quad Flat No-lead (QFNs).
•NSMD (Non-Solder Mask Defined): The solder mask opening is larger than the copper pad. The solder joint is formed on the copper, and the solder mask acts as a stop-off layer. This is the preferred method for most components as it provides better mechanical adhesion of the pad to the laminate.
•SMD (Solder Mask Defined): The solder mask opening is smaller than the copper pad, effectively defining the soldering area. The solder joint is formed on the solder mask material itself. This is sometimes used for very fine-pitch BGAs to maximize the copper pad size, but it can reduce the mechanical strength of the pad.

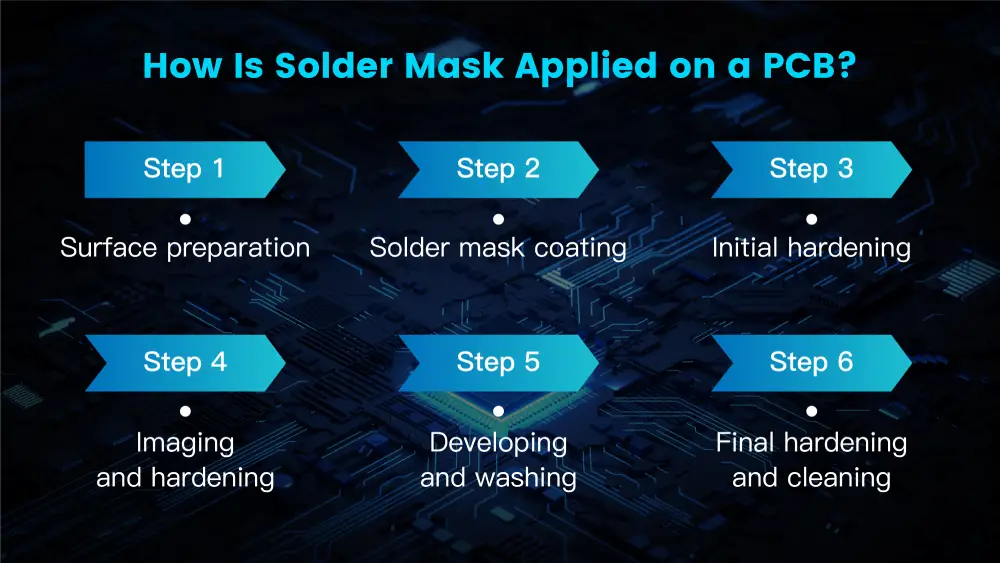

The Solder Mask Application Process (LPI)
The application of LPI solder mask is a precise, multi-step photolithographic process that requires a clean room environment and tight process control.
Step 1: Surface Preparation
The PCB surface must be meticulously cleaned to ensure proper adhesion of the solder mask material. This typically involves a chemical cleaning process to remove any residual oils, dust, or oxidation from the copper surface.
Step 2: Solder Mask Coating
The liquid photoimageable (LPI) ink is applied to the entire surface of the PCB. This can be done via screen printing, curtain coating, or spraying. Curtain coating and spraying offer the best uniformity for high-volume production.
Step 3: Tack Dry (Initial Hardening)
The coated board is placed in an oven to partially cure the liquid mask. This “tack dry” stage evaporates the solvents, leaving the mask material tacky but not fully hardened, making it ready for the imaging process.
Step 4: Imaging (UV Exposure)
The board is aligned with a phototool (a film containing the negative image of the solder mask pattern) and exposed to high-intensity UV light. The UV light passes through the clear areas of the film, hardening the exposed solder mask material. The areas that are to be removed (the pad openings) are covered by the dark areas of the film and remain unhardened.
Step 5: Developing
The board is passed through a developer solution (typically a mild alkaline solution). The unexposed, unhardened solder mask material is washed away, leaving the copper pads and other required features exposed.
Step 6: Final Cure
The developed board is subjected to a final, high-temperature thermal cure. This fully hardens the remaining solder mask material, giving it its final chemical, thermal, and mechanical resistance properties.
The Strategic Importance of Solder Mask in Manufacturing
The quality of the solder mask directly impacts the subsequent SMT assembly process. A poorly applied or designed solder mask can lead to:
•Increased Rework: Solder bridges, insufficient solder on pads, or component misalignment due to poor mask definition all require costly manual rework.
•Reduced Yield: Low first-pass yield increases manufacturing costs and slows down production.
•Field Failures: A compromised solder mask offers inadequate protection, leading to premature failure of the PCB due to environmental factors.
This is why partnering with a manufacturer that prioritizes precision in the solder mask process is crucial. Companies like BGPCBA specialize in high-quality PCB assembly, ensuring that critical layers like the solder mask adhere to stringent DFM rules and quality standards, which is essential for reliable electronics manufacturing .
Conclusion: Investing in Reliability
The PCB solder mask is far more than just a cosmetic coating. It is a fundamental engineering layer that dictates the manufacturability, reliability, and longevity of the final electronic product. By understanding the nuances of LPI materials, controlling the critical thickness parameters, and adhering strictly to DFM guidelines for clearance and dam width, designers can significantly improve their product’s performance and reduce manufacturing costs.
The choice of material, color, and design rules are all strategic decisions that must be made in close collaboration with a capable PCB manufacturer. Investing time in optimizing the solder mask design is an investment in the overall reliability of your product, ensuring that the “unsung hero” performs its vital protective duty flawlessly.
